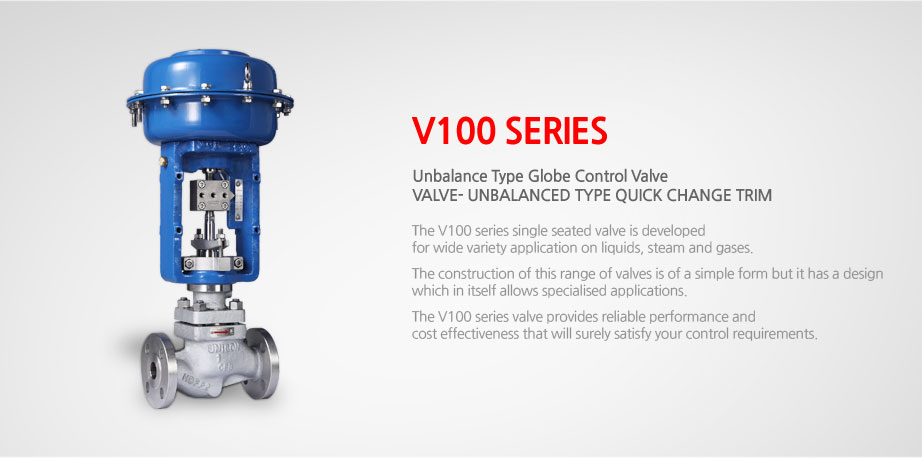

Home> Products Information > V100 SERIES

Product Overview

Introduction of our recent innovations

Standard Body Specification : Basic Design Standard : ASME B16.34
standard specification

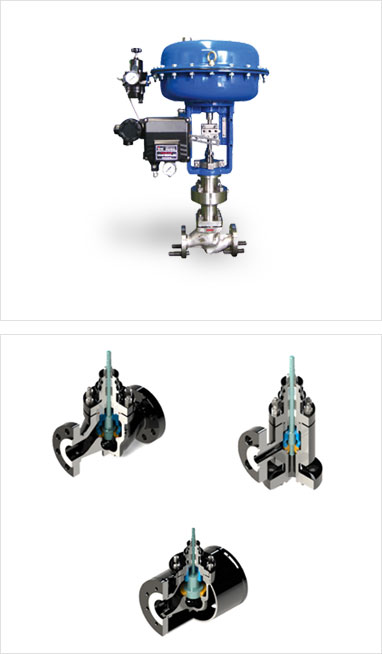

Body Style Straight way globe valve, Angle type, Jacket type
Bonnet Plain (Standard)
Fin & Extension
Bellows Seal
Long Extension (Cryogenic Service)
Size Range 1/2" to 6" (DN15 DN150)
Pressure Rating ASME 150Lb to 2500Lb
JIS 10K to 180K
PN20 to PN420
Operating
Pressure Range		 Up to 6171psi (g),
Up to 434 Kg/cm² (g)
Operating
Temperature Range 		-58℉to +1,050℉
-50℃ to +565℃
Option : -320℉ to +1,562℉
-192℃ to +850℃
End Connection Socket Weld - ASME B16.11
Butt Weld - ASME B 16.25
FF/RF/RTJ Flange - ASME B 16.5
Option JIS Flange, DIN Flange, NPT/PT Screw
Materials Carbon Steel (WCB, WCC, A105)
Chrome-moly Steel (WC6, WC9, C12A, F11, F22, F91)
Stainless Steel
(CF8, CF8M, CF3, CF3M, F304, F304L, F316, F316L)
Duplex Stainless Steel, Monel, Al Bronz, Inconel 625
Hastelloy B/C, Other Alloy
Actuator Pneumatic Diaphragm
Pneumatic Cylinder

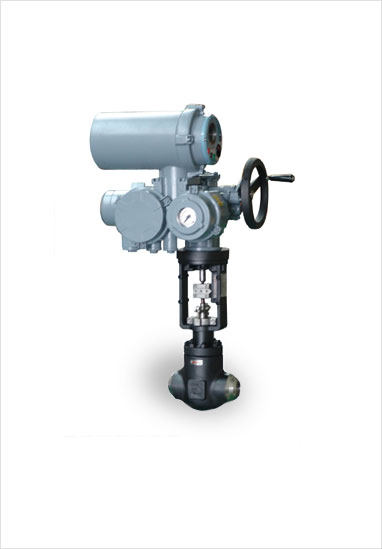

Electric Motor
Electro-Hydraulic

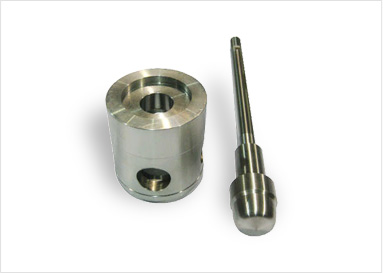

Standard Trim Specification : Unbalanced Plug Type Quick Changed Trim
others specification
Size Range 1/8\" to 6\" (3mm... 150mm)

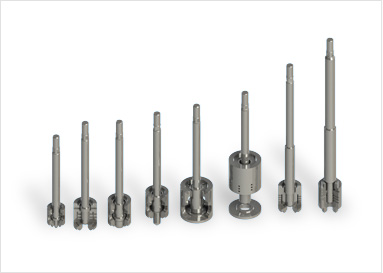

Trim Style P-Port (Parabolic Contoured Plug)
Micro Flow Split Plug
Multi-Step (Cascade)
Cage Window
Low-Noise Drilled Hole Cage (1/2/3-Stage)
Anti-Cavitation Channel Cage (1/2/3-Stage)
Labyrinth Disk Stack
Hybrid Trim (Dick Stack + Drilled Hole Cage)
Plug Guide Method Top Guide
Cage Guide
Flow Direction Gas, Steam : Flow to Open
Liquid : Flow to Close
Cv Range 0.002 to 400
Flow Characteristic Liner, Equal %, Modified Equal %, Quick Open
Seat Leakage FCI-70.2
Standard : ClassⅣ
Option : ClassⅤ
ANSI ClassⅥ(Soft Seat)
MSS-SP61 (On-Off)
Materials 316 SS, 316 SS + Stellite #6
Hardened 410 SS/440C SS
17-4PH, F22 (Nitride treatment), F51
Inconel 718, XM19
Solid Tungsten Carbide Etc.

Design Flexibility
Inherently characterized trim offered in equal % linear and quick opening.
Multi trim sizes available.
Full range of body and trim material options.
Full rationalized and interchangeable features.
Full range of bonnet and packing designs to suit various temperatures and fluids.

Design Integrity
Quick changed trim for Easy Maintenance.
Large diameter stems for stable Operation.
Heavy duty top guiding with no bottom guide to obstruct seat bore
and potentially trap debris.

Performance
High Flow Capacity.
Tight Shutoff.
Stable Operation.
Excellent flow control rangeability.
